| Category
|
|
Storage Devices
|
|
 Controllers
|
|
LSI LOGIC
|
|
PCI-E SAS RAID
|
|
6Gb/s SAS MegaRAID
|
| Buy Price GST Ex
|
Buy Price GST Inc
|
|
$1,015.45
|
$1,117.00
|
| Stock
|
GST Rate
|
|
Call
|
10%
|
| Description
|

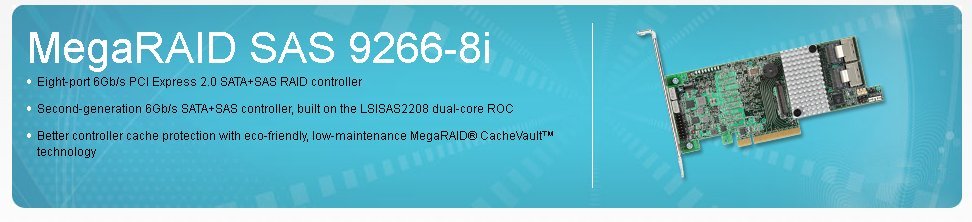

LSI MegaRAID SAS 9266-8i SGL Single Pack, PCI-e 2.0 x8, 6Gb/s throughput per port, LSISAS2208 Dual Core ROC, 8-port Internal SAS/SATA RAID 1, 5, 6, 10, 50, 60, 2 x internal mini-SAS connectors(SFF-8087), 1GB DDRIII cache, Low Profile, support up to 128 SAS/SATA hard drives or SSDs, optional BBU(direct attach LSIiBBU09) and CacheVault Module(LSICVM01).
The eight-port MegaRAID SAS 9266-8i, built on dual-core 6Gb/s MegaRAID SAS technology, combines the industry�s highest RAID performance with intelligent flash-based caching andenhanced data protection capabilities
Features
- Eight internal SATA+SAS ports
- Two mini-SAS SFF-8087 x4 connectors side mount
- 6Gb/s throughput per port
- LSISAS2208 Dual Core ROC
- 800MHz PowerPC
- MD2 Low profile (6.6 inch X 2.536 inch)
- x8 PCI Express 2.0 host interface
- 1GB DDRIII cache (1333MHz)
- Optional CacheVault Module (LSICVM01)
- Optional battery backup unit (LSIiBBU09)
- Connect up to 128 SATA and/or SAS devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
|
| Detailed Description
|
New Page 1
Features
- Eight internal SATA+SAS ports
- Two mini-SAS SFF-8087 x4
connectors – side mount
- 6Gb/s throughput per port
- LSISAS2208 Dual Core ROC
o 800MHz PowerPC®
- MD2 Low profile (6.6" X
2.536")
- x8 PCI Express 2.0 host interface
- 1GB DDRIII cache (1333MHz)
- Optional CacheVault Module
(LSICVM01)
- Optional battery backup unit
(LSIiBBU09)
- Connect up to 128 SATA and/or SAS
devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
Benefits
- Second generation 6Gb/s SATA+SAS
with unprecedented levels of performance
- Ideal for internal storage
environments using up to 128 SAS, SATA and solid state drives (SSDs)
- Unsurpassed IOPs performance and
advanced software options help users realize full benefits of
SSD deployments
- CacheVault technology option for
greener, lower total cost cache protection
- Support for MegaRAID CacheCade®
Pro 2.0 read/write caching software to accelerate I/O
performance of existing HDD arrays using SSDs as
high-performance cache.
- Meets high I/O transaction demands
of database and datacenter applications
- Provides the sustained data
transfer rates and high sequential bandwidth to meet processing
requirements of digital media, video and imaging environments
|
Specifications :
| Solution Provided |
Eight-port internal SATA+SAS
solution for high I/O and bandwidth-intensive storage
applications using SAS, SATA or SSDs; reduced maintenance costs
and total cost of ownership with supported CacheVault
technology. |
| Physical Dimensions |
MD2 Low profile (2.536”x6.60”) |
| Internal Connectors |
Two Mini-SAS SFF8087 internal
connectors (side mount) |
| Device
Support |
Up to 128 SAS and/or
SATA hard drives and SSDs |
| Host
Bus Type |
x8 lane PCI Express
2.0 compliant |
| Data
Transfer Rates |
Up to 6Gb/s per port |
| I/O
Processor/SAS Controller |
LSISAS2208 Dual-Core
RAID on Chip (ROC) |
| Cache
Memory |
1 GB 1333MHz DDRIII
SDRAM |
| Cache
Protection |
MegaRAID CacheVault
flash cache protection (optional – LSICVM01 / LSI00297)
MegaRAID LSIiBBU09 (optional – LSIiBBU09 / LSI00279) |
| Key
RAID Data Protection Features |
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Online Capacity Expansion (OCE)
- Online RAID Level Migration
(RLM)
- Auto resume after loss of
system power during arrays
array rebuild or reconstruction (RLM)
- Single controller
Multipathing (failover)
- Load Balancing
- Configurable stripe size up
to 1MB
- Fast initialization for
quick array setup
- Check Consistency for
background data integrity
- SSD Support with SSD Guard™
- Patrol read for media
scanning and repairing
- 64 logical drive support
- Up to 64TB LUN support
- DDF compliant Configuration
on Disk (COD)
- S.M.A.R.T support
- Global and dedicated Hot
Spare with Revertible
Hot Spare support
– Automatic rebuild
– Enclosure affinity
– Emergency SATA hot spare for SAS arrays
- Enclosure management
– SES (inband)
– SGPIO (sideband)
|
| Operating
Temperature |
Maximum ambient:
Controller Card: 60°C, with optional CVM01: 55°C, with
optional LSIiBBU09: 45°C |
| Operating
Voltage |
+3.3V, +12V |
| MTBF
(Calculated) |
1,031,514hours |
| Hardware
Warranty |
3 years, free advanced
technical support, advanced replacement option |
| Regulatory
Certifications |
EN55022, EN55024,
EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B;
UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick |
| RAID
Management |
MegaRAID Management Suite™
- MegaRAID Storage Manager™
- MegaCLI (command-line
interface)
- WebBIOS
|
| Optional
SSD Optimization |
MegaRAID CacheCade
Software uses SSDs in front of HDD volumes to create
high-capacity, high-performance controller cache pools
MegaRAID Fast Path Software designed to provide high-performance
I/O acceleration for SSD arrays connected to 6Gb/s
MegaRAID SATA+SAS controllers |
| OS
Support |
Extensive support
includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP,
Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and
more.
* Visit the LSI download Center for the most complete list of
supported operating systems: lsi.com/channel/support |
| Ordering
Information |
MegaRAID SAS 9266-8i
- Single Pack: LSI00295
- Kit: LSI00296
LSICVM01
- Kit: LSI00297
LSIiBBU09
- Kit: LSI00279
|
|
| Warranty Details
|
Warranty Period :
3
Years
|
|
|
