Part Number: MG04SCA40EE
Category
Storage Devices
 Hard Disks
  TOSHIBA
   3.5 inch SAS
Buy Price GST Ex Buy Price GST Inc
$256.36 $282.00
Stock GST Rate
Call 10%
Description

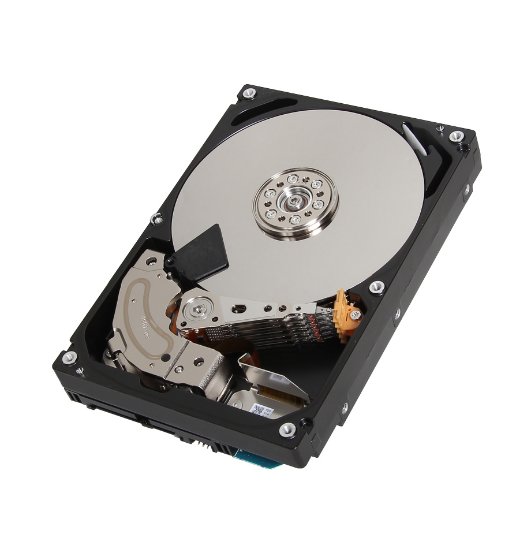

Toshiba 4TB NearLine Enterprise Capacity HDD, 3.5 inch, 128MB Cache, 7200RPM, 512e, SAS 12GB/s
Detailed Description

Enterprise HDD

Enterprise Capacity HDD

MG04SCAxxEx Series


The up to 6TB Enterprise Capacity HDD models (MG04SCAxxEx) come in a robust design with 3.5-inch form factor and performance of 7,200 rpm
.
Features of MG04SCAxxEx include 12 Gbit/s SAS interface, Toshiba persistent write cache technology, industry-standard 4K native (4Kn) and 512e Advanced Format sector technologies for optimum performance in the latest generation of servers and storage systems
.
While 4Kn models (MG04SCAxxEA) offer optimum performance and compatibility with 4K applications, the support for legacy applications and operating environments that require 512B sector lengths is provided by 512e models (MG04SCAxxEE).

Model options supporting Sanitize Instant Erase (SIE) are also available.

This feature may help to protect data from unintended disclosure in the event that drives are re-purposed or moved outside of data center environments.
Key Features
  • Industry Standard 3.5-inch 26.1 mm Height Form-Factor
  • Large Capacity (6 / 5 / 4 / 2 TB Models)
  • 7,200 rpm Performance
  • Dual-Port 12.0 Gbit/s SAS Interface
  • 550 total TB Transferred per Year Workload Rating
  • 4Kn or 512e Advanced Format Sector Technology
  • Introducing Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sanitize Instant Erase (SIE) Option Available



Applications
  • Engineered for Mid-line / Nearline Business Critical Workloads
  • Tier 2 Business-Critical Servers and Storage Systems
  • Servers Supporting Application Workloads that Benefit from High Capacity per Spindle
  • Capacity-Optimized Data Center Storage Systems



Specifications

4K native ( 4Kn ) MG04SCA60EA MG04SCA50EA MG04SCA40EA MG04SCA20EA
4K native ( 4Kn ) , SIE MG04SCA60EAY MG04SCA50EAY MG04SCA40EAY MG04SCA20EAY
512 emulation ( 512e ) MG04SCA60EE MG04SCA50EE MG04SCA40EE MG04SCA20EE
512 emulation ( 512e ) , SIE MG04SCA60EEY MG04SCA50EEY MG04SCA40EEY MG04SCA20EEY
Form Factor 3.5-inch
Interface 12 Gbit/s SAS
Formatted Capacity 6 TB 5 TB 4 TB 2 TB
Buffer Size 128 MiB
Rotation Speed 7,200 rpm
Data Transfer Speed ( Sustained ) 205 MiB/s
MTTF 1,400,000 hours
Power Consumption ( Idle - B ) 6.1 W Typ.
Weight 770 g Max. 720 g Max.

" MG04SCA60EE, MG04SCA60EA: Alternate location of bottom mounting holes is applied TYPE 1. Click here for detail. "




* Stock amount is quantity held by Award One Technology and its suppliers
