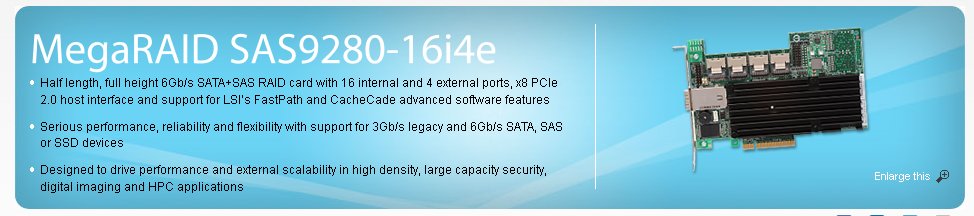

Features

Sixteen internal + four external 6Gb/s SATA+SAS ports

Four internal mini-SAS SFF-8087 x4 connectors

One mini-SAS SFF-8088 external connector

6Gb/s throughput per port

LSISAS2108 ROC

Half-Length, Full Height (6.6” x 4.376”)

x8 PCI Express 2.0 host interface

512MB DDRII cache (800MHz)

Optional battery backup unit (LSIiBBU07 or LSIiBBU08 remote mount with LSI00260)

Connect up to 240 SATA and/or SAS devices

RAID levels 0, 1, 5 and 6

RAID spans 10, 50 and 60

Auto-resume on rebuild

Auto-resume on reconstruction

Online Capacity Expansion (OCE)

Online RAID Level Migration (RLM)

SSD support with SSD Guard™

Global and dedicated hot spare with revertible hot spare support
o Automatic rebuild
o Enclosure affinity
o Emergency SATA hot spare for SAS arrays

Single controller multipathing

I/O load balancing

Comprehensive RAID management suite

Benefits

Internal drive storage and external JBOD expansion.

PCI Express® 2.0 provides faster signaling for high-bandwidth applications.

Connect up to 240 3Gb/s and 6Gb/s SATA and SAS devices

Support for LSI Advanced Software Options including MegaRAID FastPath, CacheCade™, SafeStore™, and Recovery software


Solution Provided	Sixteen-port internal/four-port external SATA+SAS solution for internal drive storage and external JBOD expansion using up to 240 SAS and/or SATA devices
Physical Dimensions	Half-Length, Full Height (6.6" x 4.376")
Internal Connectors	Four Mini-SAS SFF8087 4i internal connectors
External Connectors	One Mini-SAS SFF8088 4x external connector
Device Support	Up to 240 SAS and/or SATA devices
Host Bus Type	x8 lane PCI Express 2.0 Compliant
Data Transfer Rates	Up to 6Gb/s per port
I/O Processor/SAS Controller	LSISAS2108 RAID on Chip (ROC) and LSISAS2x36 Expander
Cache Memory	512MB 800MHz DDR II SDRAM
Battery Backup Unit	LSIiBBU07 or LSIiBBU08, an intelligent battery backup module option that connects remotely to the RAID controller
Key RAID Data Protection Features	RAID levels 0, 1, 5 and 6 RAID spans 10, 50 and 60 Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during arrays array rebuild or reconstruction (RLM) Single controller Multipathing I/O Load Balancing Configurable stripe size up to 1MB Fast initialization for quick array setup Check Consistency for background data integrity SSD Support with SSD Guard™ Patrol read for media scanning and repairing 64 logical drive support Up to 64TB LUN support DDF compliant Configuration on Disk (COD) S.M.A.R.T support Global and dedicated Hot Spare with Revertible Hot Spare support – Automatic rebuild – Enclosure affinity – Emergency SATA hot spare for SAS arrays Enclosure management – SES (inband) – SGPIO (sideband)
Operating Temperature	Maximum ambient: 60°C (45°C w/iBBU)
Operating Voltage	+3.3V
Warranty	3 years, free advanced technical support, advanced replacement option
Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management	MegaRAID Management Suite MegaRAID Storage Manager MegaCLI (command-line interface) WebBIOS
OS Support	Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. * Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
MTBF	919,964 Hours
Ordering Information	LSI00210 (Single-pack)

Warranty Details
Warranty Period : 3 Years
