Part Number: LSI00199
Category
Storage Devices
Click here for Brochure
 Controllers
  LSI LOGIC
   PCI-E SAS RAID
    6Gb/s SAS MegaRAID
Buy Price GST Ex Buy Price GST Inc
$275.45 $303.00
Stock GST Rate
Call 10%
Description
LSI MegaRAID SAS 9240-4i SGL Single Pack, PCI-e 2.0 x8, 6Gb/s throughput per port, LSISAS2008 ROC, 4-port Internal SAS/SATA RAID 0,1,5,10,50 and JBOD, 1 x internal mini-SAS connectors(SFF-8087), Low Profile, support up to 64 SAS/SATA hard drives or SSDs in non-RAID or 16 drives in RAID configuration, 15.2 x 26 x 4.1cm

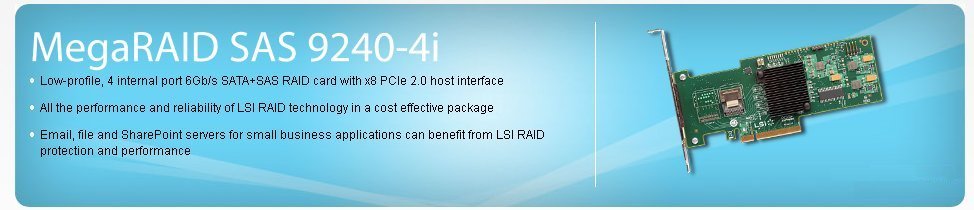

- Low-profile, 4 internal port 6Gb/s SATA+SAS RAID card with x8 PCIe 2.0 host
interface
- All the performance and reliability of LSI RAID technology in a cost effective
package
- Email, file and SharePoint servers for small business applications can benefit from
LSI RAID protection and performance
Detailed Description
New Page 1


Features

  • 6Gb/s data transfer rate
  • Four internal 6Gb/s SATA+SAS ports
  • One x4 mini-SAS internal connectors (SFF8087)
  • LSISAS2008 controller
  • RAID levels 0, 1, 5, 10, 50 and JBOD mode
  • Hardware RAID solution
  • x8 PCI Express 2.0 host interface
  • Low-profile form factor
  • Supports up to 64 physical devices
    o  Up to 16 physical devices in RAID configuration
  • Patrol read
  • Consistency check
  • S.M.A.R.T. error detection
  • Power management support
  • MegaRAID Storage Manager

Benefits

  • Support for SAS and SATA drives
  • Support for HDDs and SSDs
  • Built on proven MegaRAID stack
  • Migration path to full-featured MegaRAID SAS solutions
  • Cost-effective RAID implementation
  • Advanced RAID management suite
  • Environmentally friendly with a low-power controller and cardboard packaging


Specifications

MegaRAID SAS 9240-4i CONTROLLER CARD
Solution Provided Low-cost, green SATA+SAS RAID solution for high-density servers and workstations with the flexibility to use both SATA and SAS hard drives and solid state drives
Physical Dimensions 6.6" x 2.536" (Low-Profile)
Connector Internal
One X4 Mini-SAS SFF8087 (vertical orientation)
Max Number of Physical
Devices
Non-RAID:
RAID 0:
RAID 1:
64
16 per volume
2 per volume plus hotspare
RAID 5:
RAID 10:
RAID 50:
16 per volume
16 per volume
16 per volume

Host Bus Type 8-lane, 5 GT/s PCI Express 2.0 Compliant
Data Transfer Rates Up to 6Gb/s per port
SAS Controller LSISAS2008
Key RAID Data Protection Features
  • RAID levels 0, 1, 5, 10, 50 and JBOD mode
  • Selectable logical drive as boot drive
  • Consistency Check
  • Fast initialization for quick array setup
  • Native Command Queuing
  • Staggered spin up for SATA drives
  • Hot plug support
  • Global hot spare support
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Single controller Multipathing
  • I/O Load balancing
  • SSD support with SSD Guard
  • Automatic rebuild of hot spare drives
  • Auto resume during array rebuild
  • Fault LED support through SGPIO
  • >2TB logical drive support
  • Soft bad block management
  • Error recovery support
  • DDF compliant Configuration on Disk
  • S.M.A.R.T. support
  • Patrol read for media scanning and repairing
  • Enclosure management
    - SES (inband)
    - SGPIO (sideband)
RAID Management
MegaRAID Management Suite
  • MegaRAID Storage Manager™
  • MegaCLI (command-line interface)
  • WebBIOS
Environments
   Operating
   0°C to 70°C
   5 to 90% Non-condensing
Storage
-45°C to 105°C
5 to 90% Non-condensing

PCI Card Type   3.3V Add-in Card
PCI Voltage   +12V ±10%
PCI Power
13.5W
PCI Modes

   Bus Master DMA

LED Indicators ​  Internal
  Activity/Fault per x4 port – Heartbeat
MTFB   >2,000,000 Hours
Compliances   EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe                (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
OS Support Microsoft® Windows®, Linux® (SuSE®, Red Hat®), Solaris®, Vmware®. See www.lsi.com/support for details on versions.
Ordering Information LSI SAS 9240-4i Single Pack P/N: LSI00199, LSI SAS 9240-4i Kit P/N: LSI00203
Brackets Full Height and Low-Profile
Warranty 3 years, advanced replacement option, free technical support at lsi.com/support



Warranty Details
Warranty Period : 3 Years
