Part Number: LSI00182
Category
Storage Devices
Click here for Brochure
 Controllers
  LSI LOGIC
   PCI-E SAS HBA
    3Gb/s SAS HBA
Buy Price GST Ex Buy Price GST Inc
$283.64 $312.00
Stock GST Rate
Call 10%
Description
LSI SAS 3081E-R Single Pack, PCI-e x 8, 3 Gb/s, 8-port SAS Host Bus Adapter, 2 x Internal x4 SFF8087 miniSAS connectors, Low Profile, driving up to 244 SAS and SATA devices. 3Gb/s per port, RAID 0,1,1E,JBOD. No Cable

The LSI SAS3081E-R card provides the greatest available throughput to internal server storage arrays through eight internal 3 Gb/s ports, driving up to 244 SAS and SATA devices. This card offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing SFF-8087 miniSAS connectors, the low-profile SAS3081E-R is an excellent fit for 1U/2U servers driving up to 4800 MB/s full-duplex.

The SAS3081E-R also offers Integrated RAID 0, 1, and 1E for reliable data protection with high-availability. Furthermore, by reducing RAID code overhead, this HBA delivers the greatest internal READ/WRITE performance available, making it perfect for medium to high-capacity internal storage applications.

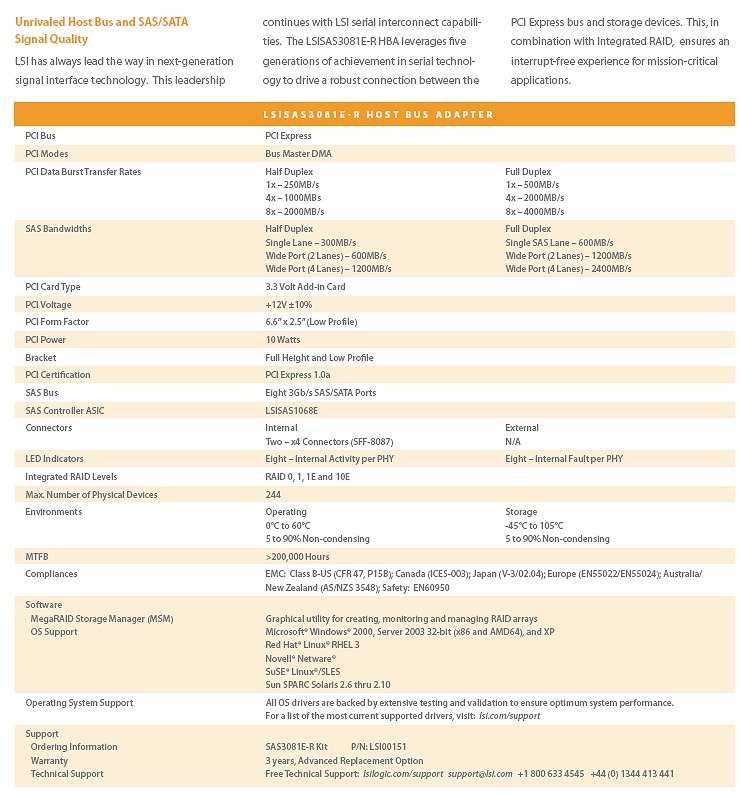

Detailed Description
New Page 1

Features

  • 3 Gb/s per port
  • Two internal miniSAS connectors
  • Connects to both SAS and SATA Hard Disks Drives
  • Fusion-MPT™ architecture Integrated RAID 0, 1, and 1E
  • Allows up to 244 total end-point devices

Benefits

  • Supports all major Operating Systems
  • Delivers 2400 MB/s to enclosures, 4800 MB/s full duplex
  • Low-Profiles MD2 form factor PCI card
  • Ultimate SAS/SATA flexibility from 8 internal ports
  • Integrated RAID avoids additional host CPU overhead

Warranty Details
Warranty Period : 3 Years
* Stock amount is quantity held by Award One Technology and its suppliers
