| Category
|
|
Storage Devices
|
|
 Controllers
|
|
LSI LOGIC
|
|
PCI-E SAS HBA
|
|
3Gb/s SAS HBA
|
| Buy Price GST Ex
|
Buy Price GST Inc
|
|
$331.82
|
$365.00
|
| Stock
|
GST Rate
|
|
Call
|
10%
|
| Description
|
LSI SAS 3442E-R Single Pack SAS HBA, PCI-e x8 Host Bus, 1 x SAS SFF-8470 External Connector, 1 x SAS SFF-8484 Internal Connector, Low Profile MD2. Includes driver CD, low-profile bracket, and quick installation guide. No cable
In the Box: SAS3442E-R Card, MyStorage/Driver CD, no Cables, optional low-profile bracket, and installation guide
The LSI SAS3442E-R four-port internal/four-port external SAS/SATA PCI Express storage adapter provides 300 MB/s bandwidth (600 MB/s, full duplex) on each port for combined throughput of up to 2.4 GB/s. The storage adapter supports multi-volume OS independent Integrated RAID 0, 1, and 1E without the need for special drivers. The SAS3442E-R features PCI Express connectivity, removing the host bus bottleneck from the parallel PCI busses.
|

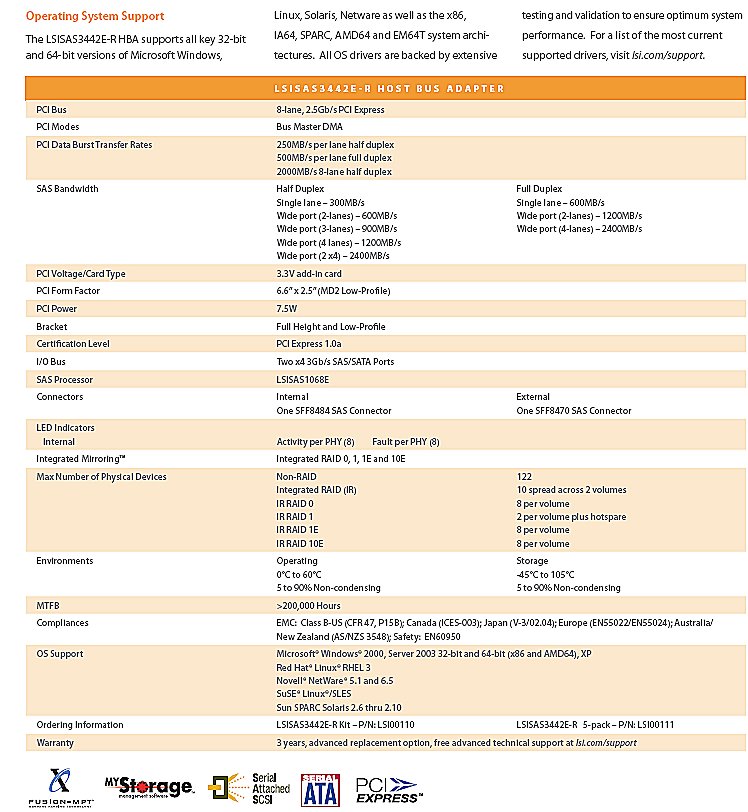

| Detailed Description
|
Features
- 3Gb/s per port
- x4 internal SFF-8484 / x4 external SFF-8470
connectors
- Integrated RAID 0, 1, and 1E
- 8-lane 2.5 Gb/s PCI Express
- MD-2 small form-factor design
- Connects to both SAS and SATA HDDs and tape
drives
- Allows more than 122 total end-point devices
- Fusion-MPT architecture provides more than
140,000 I/Os per second
- Supports all major operating systems
Benefits
- Integrated RAID avoids additional host CPU
overhead
- Flexible SAS/SATA array architecture
optimizes cost
- SAS/SATA interconnect proven through robust
LSI serial technology
- Speed: 3Gb/s per port combines to 2.4 GB/s
full duplex speed
- Complete solution: kit includes all
necessary cables and brackets
- Market leader: LSI SAS powers 80% of SAS
worldwide
| Warranty Details
|
Warranty Period :
3
Years
|
|
|
