Part Number: LSI00138
Category
Storage Devices

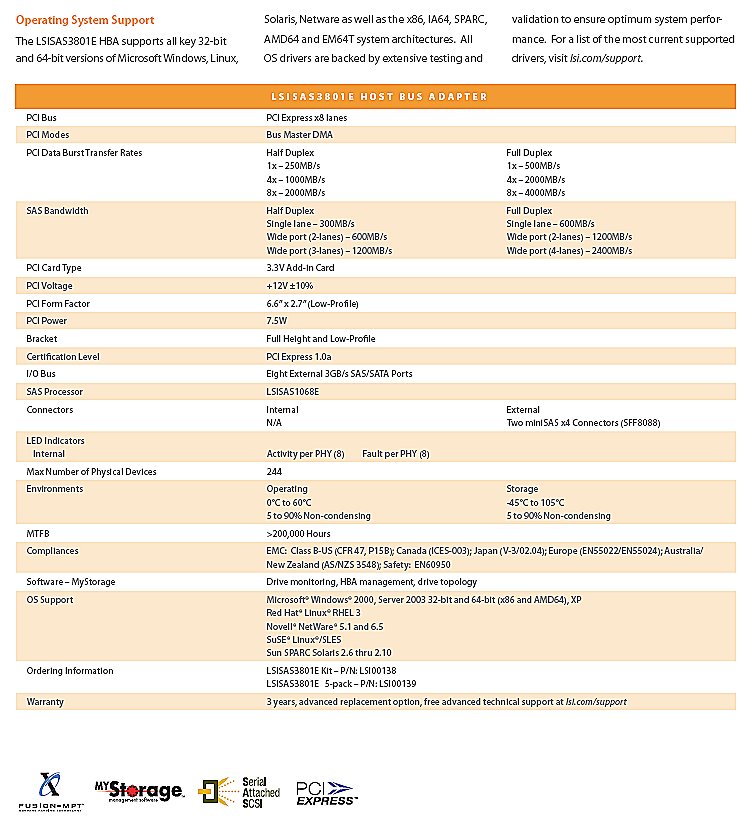

Click here for Brochure
 Controllers
  LSI LOGIC
   PCI-E SAS HBA
    3Gb/s SAS HBA
Buy Price GST Ex Buy Price GST Inc
$447.27 $492.00
Stock GST Rate
Call 10%
Description
LSI SAS 3801E Single Pack, PCI-e x 8, 3 Gb/s, 8-port SAS Host Bus Adapter, 2 x External x4 SFF8088 miniSAS connectors, Low Profile, driving up to 244 SAS and SATA devices. 3Gb/s per port delivers 2400 MB/s to external enclosures. For SAS RAID sub-BBtem/SAS JBOD. No cable

In the Box: SAS3801E Card, MyStorage/Driver CD, no Cables, optional low-profile bracket, and installation guide

The host bus adapter drives external server storage RAID and non-RAID enclosures with unprecedented throughput by connecting an eight-lane 2.5 Gb/s PCI Express bus with two external x4 SFF8088 miniSAS connectors.

This SAS/SATA low-profile adapter is perfect for 1U/2U servers, driving 4800 MB/s full-duplex externally.

The LSI SAS3801E card enables large-scale direct attach storage (DAS) arrays through eight external 3Gb/s ports, driving up to 122 SAS and SATA devices. The host bus adapter drives external server storage RAID and non-RAID enclosures with unprecedented throughput by connecting an eight-lane 2.5 Gb/s PCI Express bus with two external x4 SFF8088 miniSAS connectors. This SAS/SATA low-profile adapter is perfect for 1U/2U servers, driving 4800 MB/s full-duplex externally.
Detailed Description

Features

  • 3Gb/s per port
  • (2) x4 external SFF-8088 mini-SAS connectors
  • 8-lane, 2.5 Gb/s PCI Express
  • MD-2 small form-factor design
  • Connects to SAS and SATA HDDs and tape drives
  • Allows more than 122 total end-point devices
  • Fusion-MPT architecture provides more than 140,000 I/Os per second
  • Supports all major operating systems

Benefits

  • Flexible SAS/SATA array architecture optimizes cost
  • 8 external high-speed SAS ports for maximum mass-storage connectivity
  • 3Gb/s per port delivers 2400 MB/s to external enclosures
  • SAS/SATA interconnect proven through the LSI robust serial technology

Warranty Details
Warranty Period : 3 Years
* Stock amount is quantity held by Award One Technology and its suppliers
