Part Number: IW-R300-01N
Category
Components
 Computer Cases
  Rackmount Cases
   INWIN
Buy Price GST Ex Buy Price GST Inc
$1,078.18 $1,186.00
Stock GST Rate
Call 10%
Description

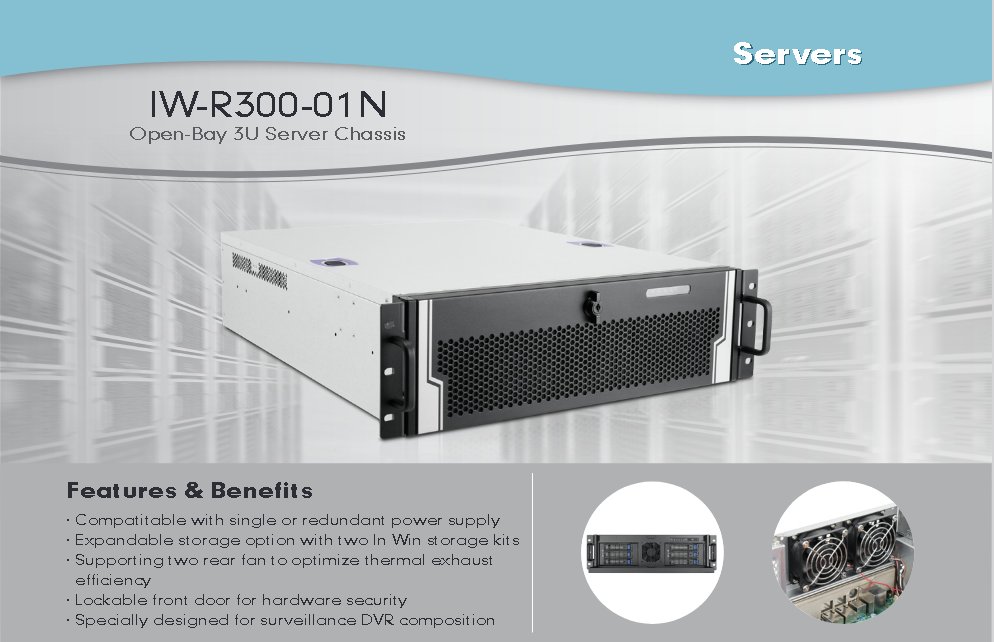

In-Win 3U Open-Bay Middle Depth Server Chassis with 800w Platinum 1+1 Redundant PSU andi USB3 I/O on Front Panel. (Special Build)

- Specially designed for surveillance DVR composition
- supports ATX (12 inch x 9.6 inch), CEB (12 inch x 10.5 inch)
- Drive Bay External: 5.25 inch x 4
- 2.5 inch Hot-Swap (optional In-Win or IcyDock HotSwap Systems)
- Power Supply 2U 1+1 redundant 800W - Special Build
- Expandable storage option with InWin storage kit
- Lockable front door for hardware security
- Supporting 60 x 25mm two rear fans to optimize thermal exhaust efficiency (optional)
- Front USB 2.0, USB 3.0 (special build)
- Cooling 80 x 25 mm PWM front fan x 1
- 60 x 25 mm PWM rear fan x 2 (optional)
Detailed Description
Specification
Industry Standard EIA-RS310D
M/B Form Factor ATX (12" x 9.6"), CEB (12" x 10.5")
Drive Bay � External: 5.25" x 4
� 2.5" hot-swap x 2 (optional)
Power Supply Supports:
� Form factor: 2U single or 2U 1+1 redundant
� Watt: single 500W , redundant 550W
Indicator Power status, HDD, LAN activity LEDs
Front Control Panel Power switch, system reset, USB 2.0 x 2
Chassis Security Intrusion switch (optional)
Cooling Fan Supports:
� 80 x 25 mm PWM front fan x 1
� 60 x 25 mm PWM rear fan x 2 (optional)
Expansion Slot Full height PCI slot x 7
Material � Material: SGCC
� Thickness: 1.2mm
Rail Kit Supports 28" ball-bearing rail
Product Dimensions (DxWxH; Chassis Only) 550 x 482.6 x 133.4mm
(21.7" x 19" x 5.25")
Package Dimensions (DxWxH) 710 x 595 x 258mm
Weight (Chassis Only) � Net weight: 12.3kg
� Gross weight: 17.8kg
Cubic Feet 3.91
Container Information Single packing with pallets:
� 20': 168pcs
� 40': 350pcs
� 40' HQ: 400pcs
* The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make any final modifications.

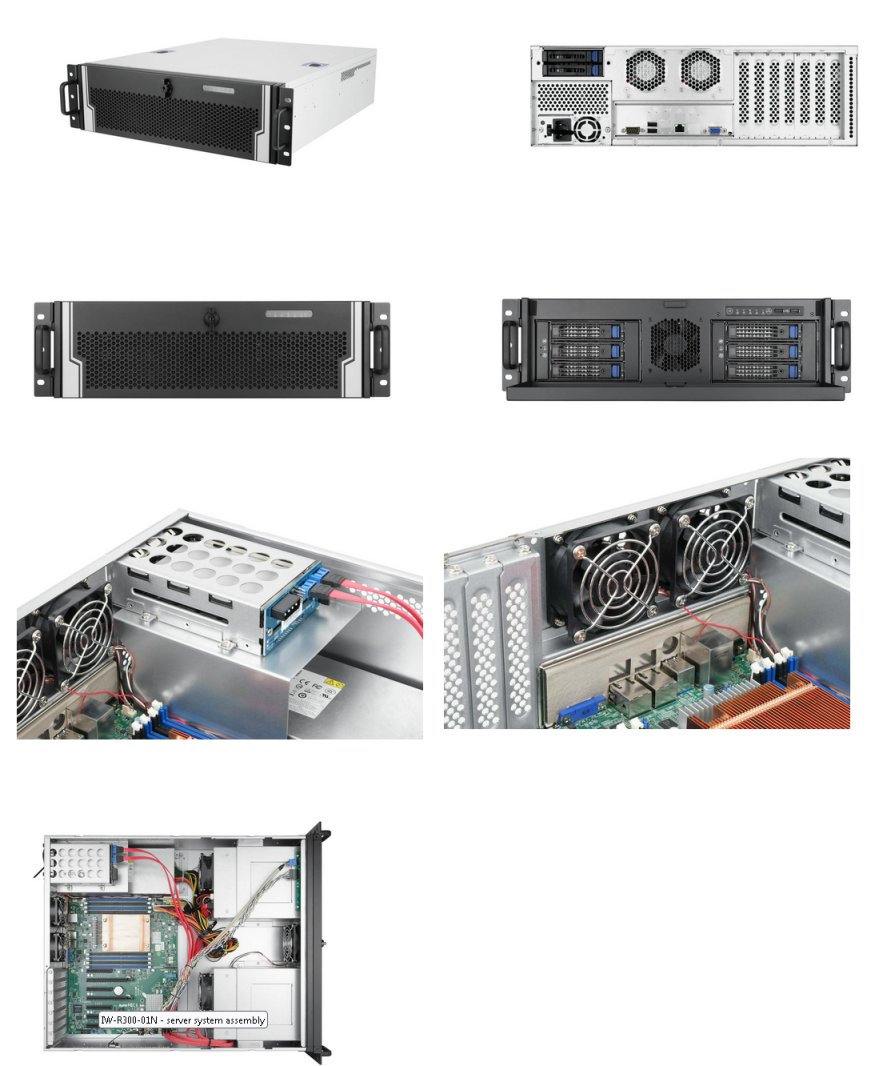

* The above image is for reference only. All hardware components and optional parts are not included.
Warranty Details
Warranty Period : 1 Year
* Stock amount is quantity held by Award One Technology and its suppliers
