CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with 80 PLUS Gold efficiency to your PC. Fully modular cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today's demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105�C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.

QUIET, DEPENDABLE, EFFICIENT

Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.

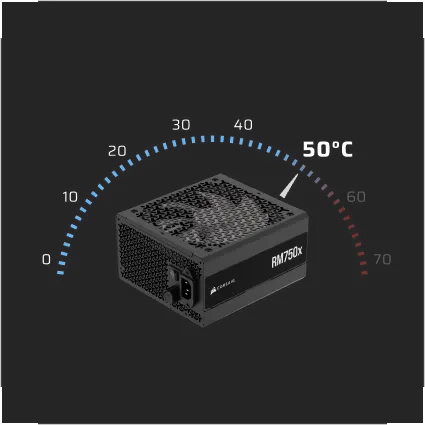

50 degrees C CONTINUOUS OPERATING TEMPERATURE

Ensures reliable power for your PC, even under high-stress conditions.

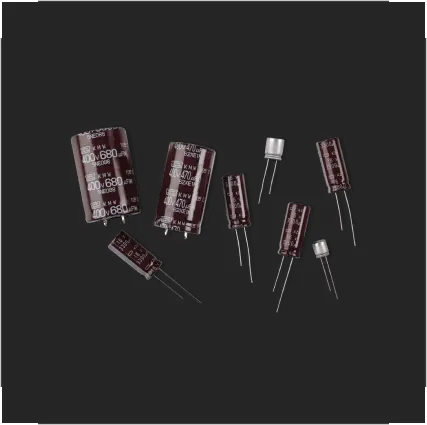

105 degrees C-RATED CAPACITORS

Built with 100% Industrial-grade, 105 degrees C-rated Japanese electrolytic capacitors for unwavering power and reliability.

ATX 3.1 CERTIFIED

Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.

CLEAN CABLING, EVERY TIME

FULLY MODULAR CONNECTORS

Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.

Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.

THE STRONG, SILENT TYPE

140mm LOW-NOISE FAN

A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

ENGAGE MANUAL CONTROLS

MANUAL FAN OVERRIDE KNOB

Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.

TEN-YEAR WARRANTY

WORLD-CLASS SUPPORT

CORSAIR's award-winning service means you can enjoy your gear worry-free.

RM750x POWER TABLE

MODEL	RPS0199
Part No.	75-005878
AC Input Rating
AC Input	100 � 240V
Input Current	10A - 5A
Frequency	47~63Hz
	Max Load	Max Output
+3.3V	20A	150W
+5V	20A
+12V	62.5A	750w
+5Vsb	3A	15W
Total Power	750W
